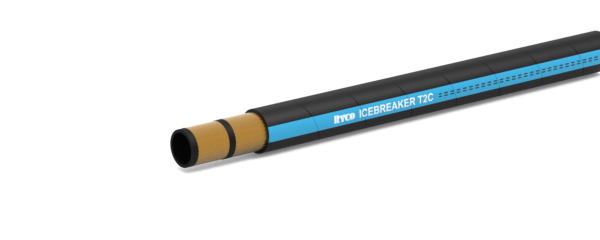

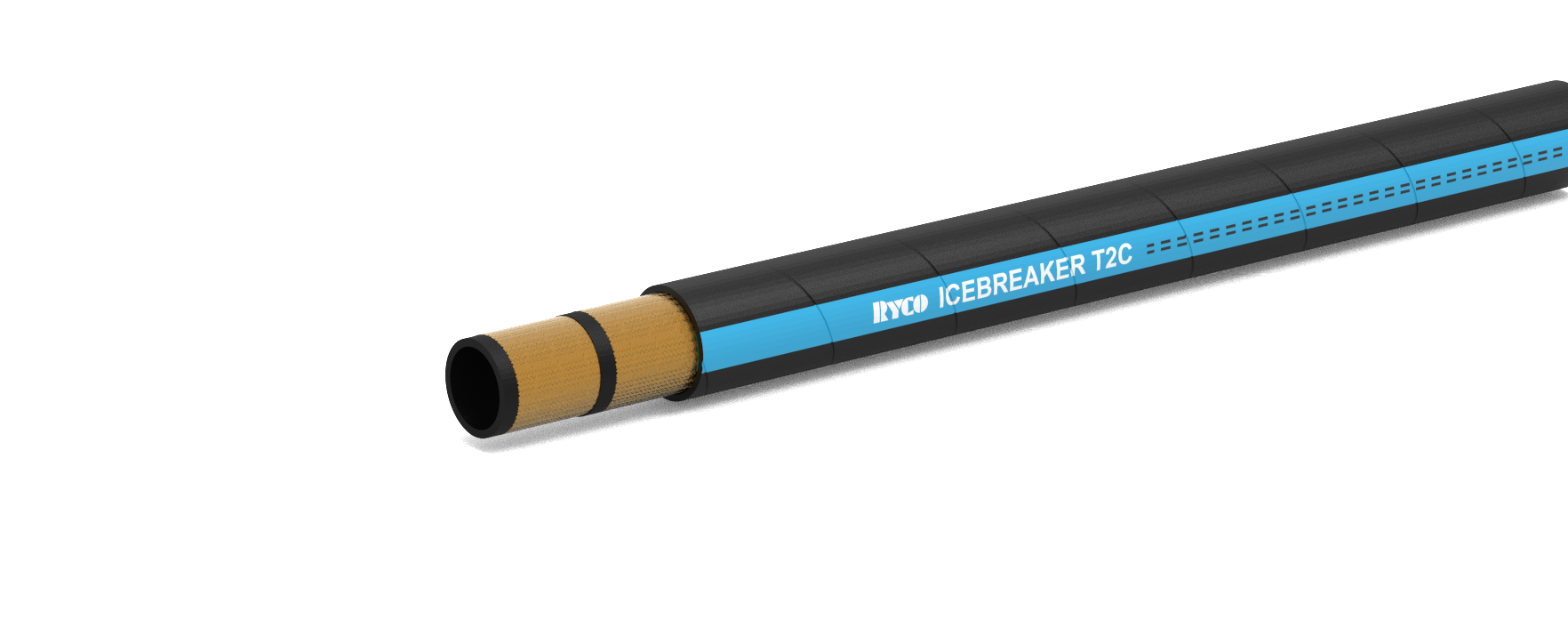

T2C ICEBREAKER – Two Wire Braid 1300-6100 psi Low Temperature Hose
Additional information
Technical Specifications:
High pressure hydraulic oil lines in applications where low temperature environmental conditions exist.
TUBE: Black, specially formulated oil resistant synthetic rubber.
REINFORCEMENT: Two braids of high tensile steel wire.
COVER: Black, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
AS 3791 100R2AT, DIN 20022-2SN, EN 853 Type 2SN,
ISO 1436 Types R2AT & 2SN, SAE 100R2AT.
FEATURES: Low Temperature hose (-60°C/-76°F).
TEMPERATURE RANGE: From -60°C to +100°C (-76°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| T2C LOW TEMPERATURE HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| T24C | 6 | -04 | T2000 |
| T25C | 8 | -05 | T2000 |
| T26C | 10 | -06 | T2000 |
| T28C | 12 | -08 | T2000 |
| T210C | 16 | -10 | T2000 |
| T212C | 19 | -12 | T2000 |
| T216C | 25 | -16 | T2000 |
| T220C | 31 | -20 | T2000 |
| T224C | 38 | -24 | T2000 |
| T232C | 51 | -32 | T2000 |
