TG000 – NPT / NPTF / NPSM

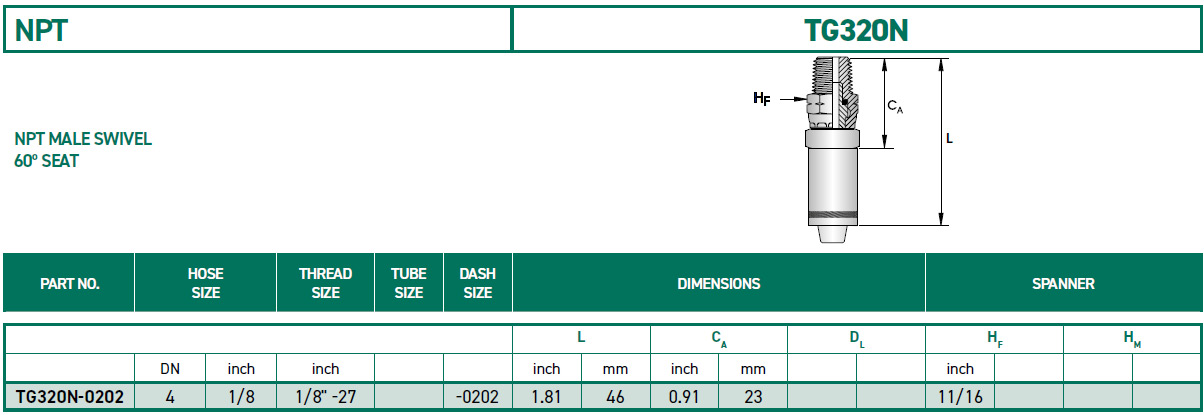

NPT: NATIONAL PIPE TAPER

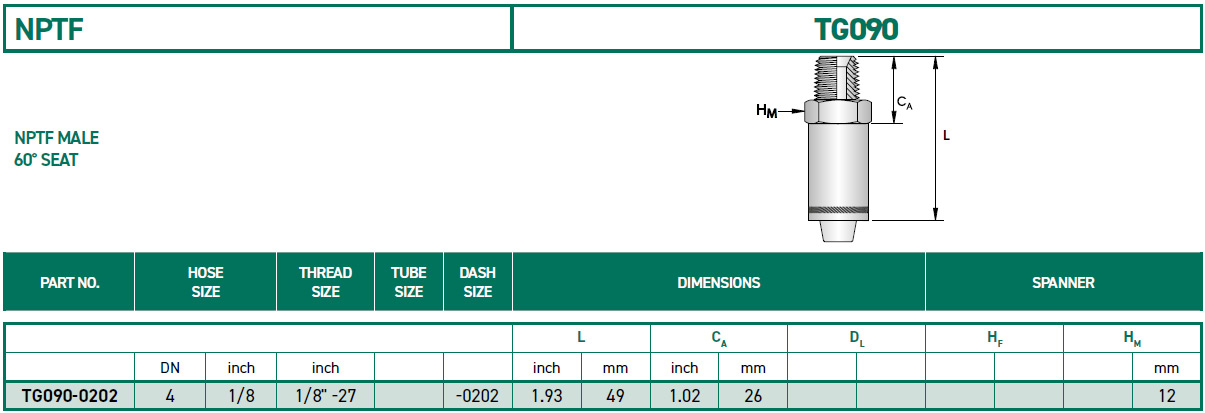

NPTF: NATIONAL PIPE TAPER FUEL

Sealing Method: Tapered Thread or 30° Cone Seat
Thread Form: 60°
Thread Standard: SAE J476a, ANSI B1.20.3, ANSI B1.20.1

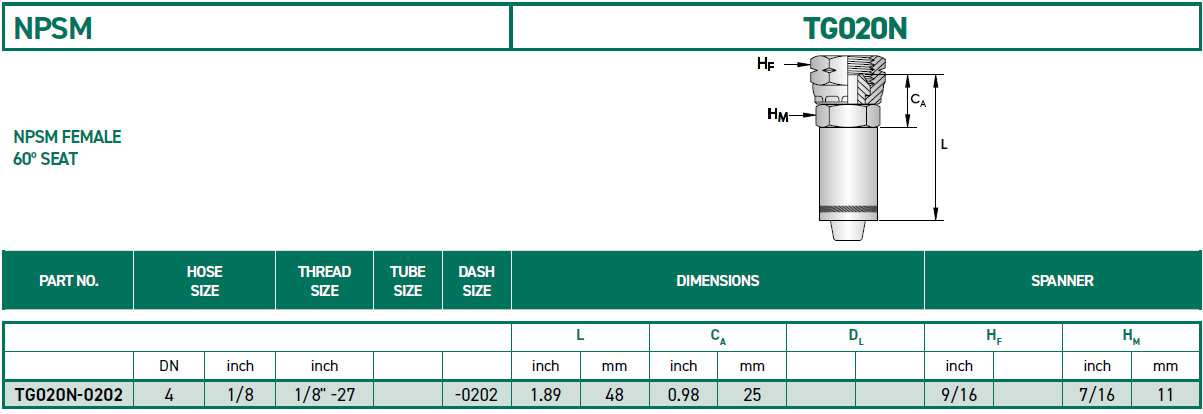

NPSM NATIONAL PIPE STRAIGHT MECHANICAL
Sealing Method: 30° Cone Seat
Thread Form: 60°
Thread Standard: SAE J476a, ANSI B1.20.1
Connection Standard: SAE J514
