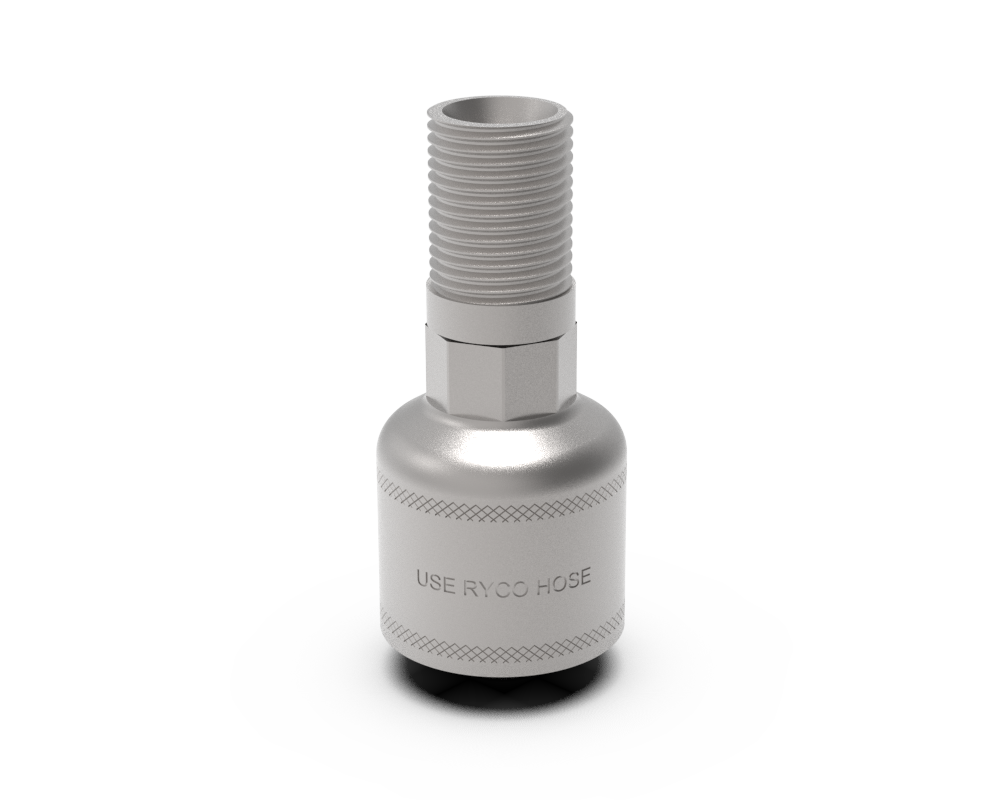

TP000 – NPT / NPTF / NPSM
[su_row class=”coupling-content”][su_column size=”1/2″ center=”no” class=””]NPT: NATIONAL PIPE TAPER
NPTF: NATIONAL PIPE TAPER FUEL
Sealing Method: Tapered Thread or 30° Cone Seat
Thread Form: 60°
Thread Standard: SAE J476a, ANSI B1.20.3, ANSI B1.20.1 [/su_column][su_column size=”1/2″ center=”no” class=””]NPSM NATIONAL PIPE STRAIGHT MECHANICAL
Sealing Method: 30° Cone Seat
Thread Form: 60°
Thread Standard: SAE J476a, ANSI B1.20.1
Connection Standard: SAE J514[/su_column][/su_row]
