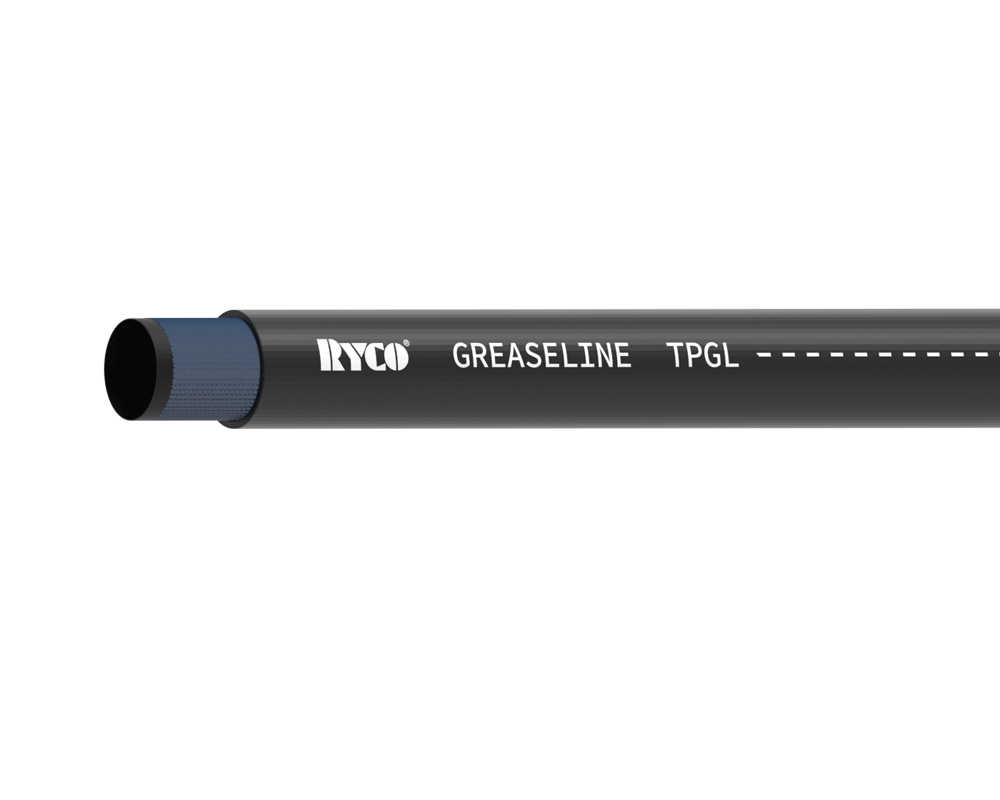

Greasing-and-Lubrication-TPGL

Additional information

TPGL

RYCO GREASELINE

THERMOPLASTIC
HIGH PRESSURE
GREASELINE HOSE

RECOMMENDED FOR:
Rubber-covered hose for high pressure greasing and lubrication systems.

TUBE:
White, oil resistant seamless thermoplastic polymer.

REINFORCEMENT:
One braid of synthetic fibre.

COVER:
Black, oil and abrasion resistant thermoplastic ploymer.
Cover is non-perforated.

FEATURES:
Polyester reinforcement for high pressure.
Extremely compact and flexible, and highly kink resistant. Special low-friction smooth cover for easy installation and compact routing.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
TG000 Series (Size -02).

FIELD ATTACHABLE NON-SKIVE:
6000 Series insert (size -02).
P000 Series ferrule (size -02).

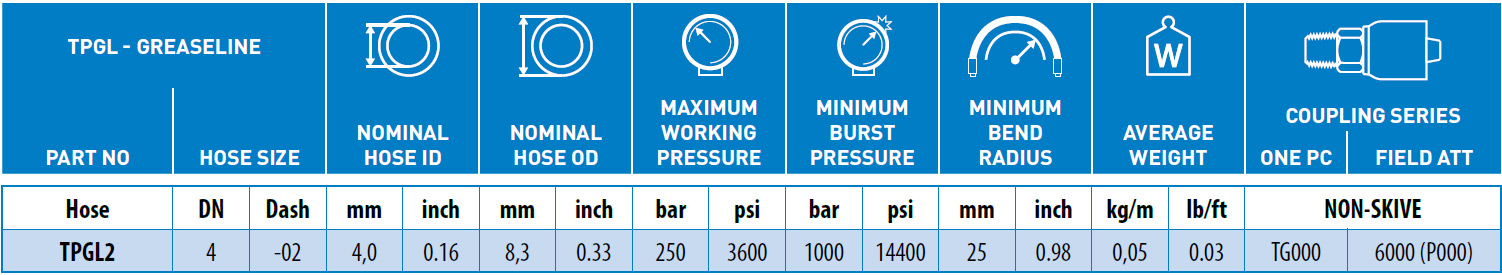

TPGL-Greaseline-data

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
