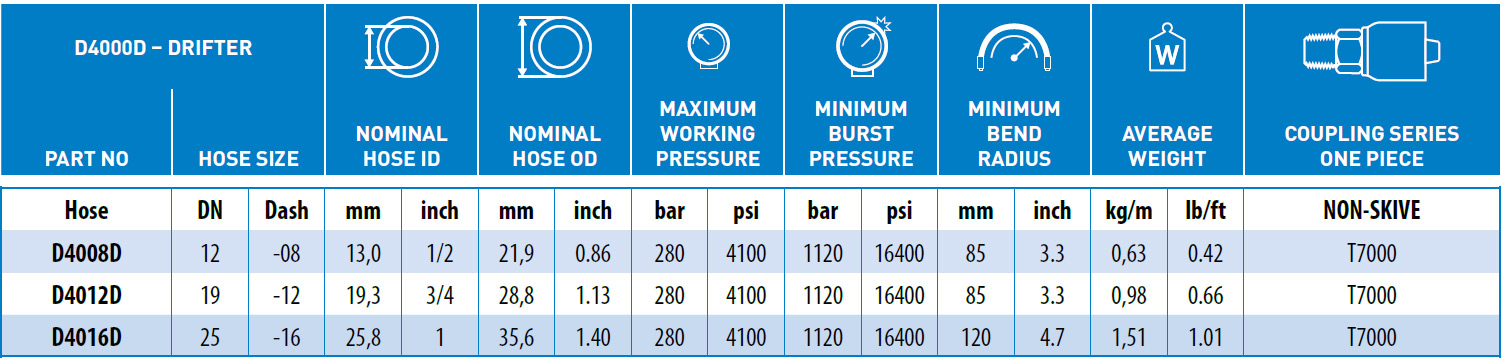

D4000D

RYCO DRIFTER

EXTRA ABRASION RESISTANT
HIGH PRESSURE
FRAS
ULTRA FLEXIBLE MULTI-SPIRAL
HOSE FOR DRIFTER UNITS

RECOMMENDED FOR:
High pressure hydraulic oil lines and Jumbo drill rig drifter (rock drill) units. The ultra flexible and tough construction improves service life in applications where the outside cover of the hose is subject to bending, abrasion and rockfall that may cause premature failure of standard hoses.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:

ISO 18752-CC, AS 3791 100R12, EN 856 Type R12,

ISO 3862 Type R12 & SAE 100R12.

Very small Minimum Bend Radius of up to 60% less than SAE 100R12.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Four alternating layers of spiralled high tensile steel wire.

COVER:
DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Embossed layline for positive, permanent identification. No skiving required with T7000 Series Crimp Couplings.

FEATURES:
The ultra flexibility combined with very high abrasion resistant properties of the hose cover provides the necessary attributes for drifter (rock drill) unit assemblies. Combined

with the extra high working pressures and excellent impulse life, D4000D DRIFTER provides increased service life and minimises Jumbo equipment downtime.

FRAS – FLAME RESISTANCE AND ANTI-STATIC:
DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A.

Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
From -40°C to +121°C (-40°F to +250°F).

For water, emulsions etc. page 23.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -08 to -16).

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
