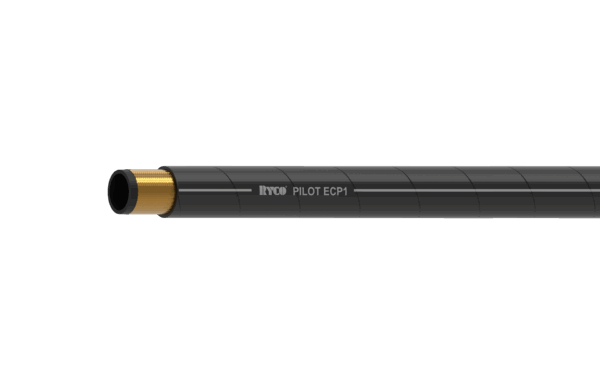

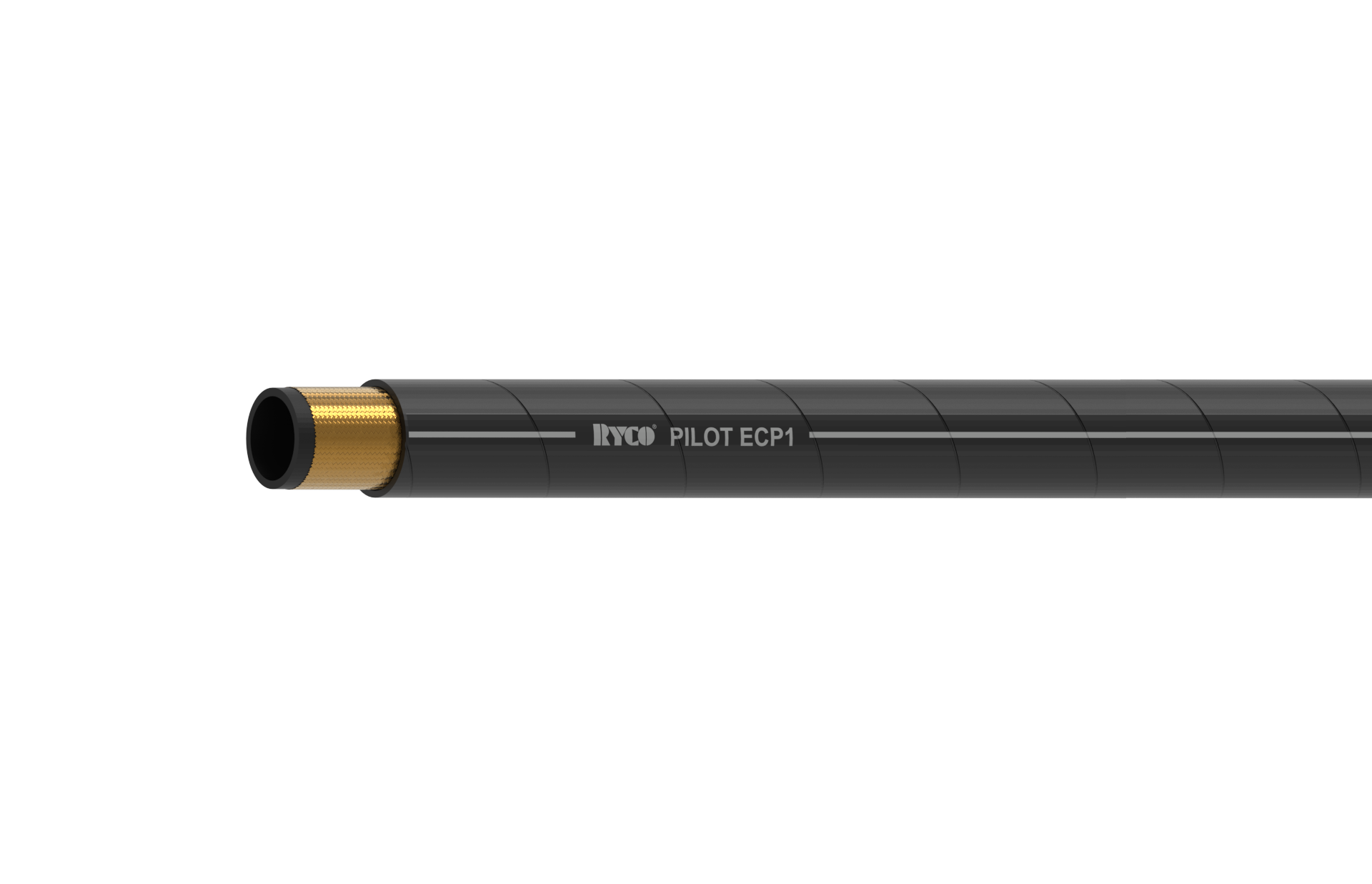

ECP1 Pilot Compact One Wire Braid Hose
Additional information
ECP1 Pilot
Compact one wire braid hose.
RECOMMENDED FOR:
High pressure hydraulic oil pilot lines. Compact dimensions and very small bend radius are advantages in installations where space is limited.
CONSTRUCTION:
Ryco Proprietary ECP1 Design.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
FEATURES:
Light and extremely flexible, with compact dimensions and a very small bend radius that are advantages in installations where space is limited. Low volumetric expansion ensures maximum responsiveness of hydraulic controls.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F), with intermittent operation up to +121°C (+250°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -03 to -08).
| ECP1 – PILOT COMPACT HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| ECP13 | 5 | -03 | T2000 |
| ECP14 | 6 | -04 | T2000 |
| ECP15 | 8 | -05 | T2000 |
| ECP16 | 10 | -06 | T2000 |
| ECP18 | 12 | -08 | T2000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
