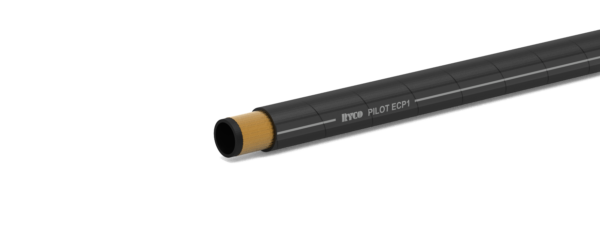

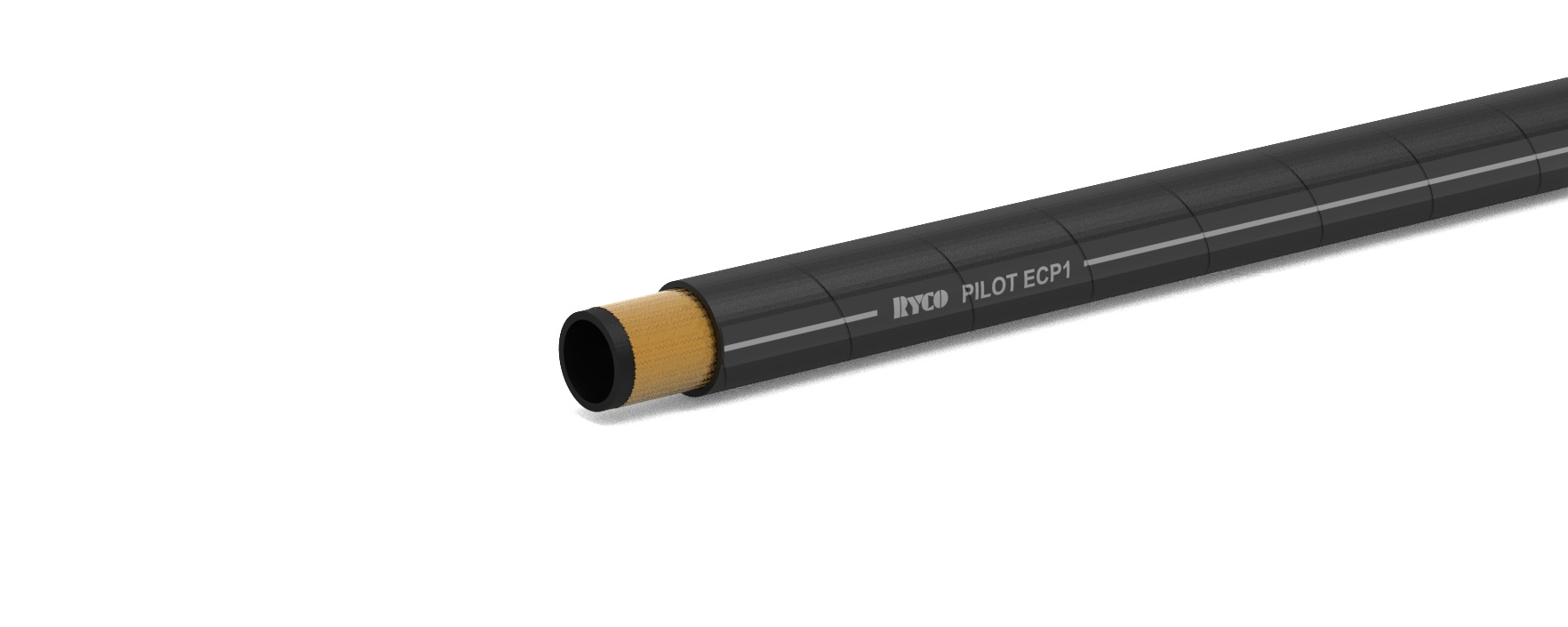

ECP1 Pilot – One Wire Braid 1800 psi Compact Hose ENERGY Cover
Additional information
Technical Specifications:
High pressure hydraulic oil pilot lines. Compact dimensions and very small bend radius are advantages in installations where space is limited.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid of high tensile steel wire.
COVER: Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
FEATURES: Light and extremely flexible, with compact dimensions and a very small bend radius that are advantages in installations where space is limited. Low volumetric expansion ensures maximum responsiveness of hydraulic controls.
TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F), with intermittent operation up to +121°C (+250°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| ECP1 – PILOT COMPACT HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| ECP13 | 5 | -03 | T2000 |
| ECP14 | 6 | -04 | T2000 |
| ECP15 | 8 | -05 | T2000 |
| ECP16 | 10 | -06 | T2000 |
| ECP18 | 12 | -08 | T2000 |
