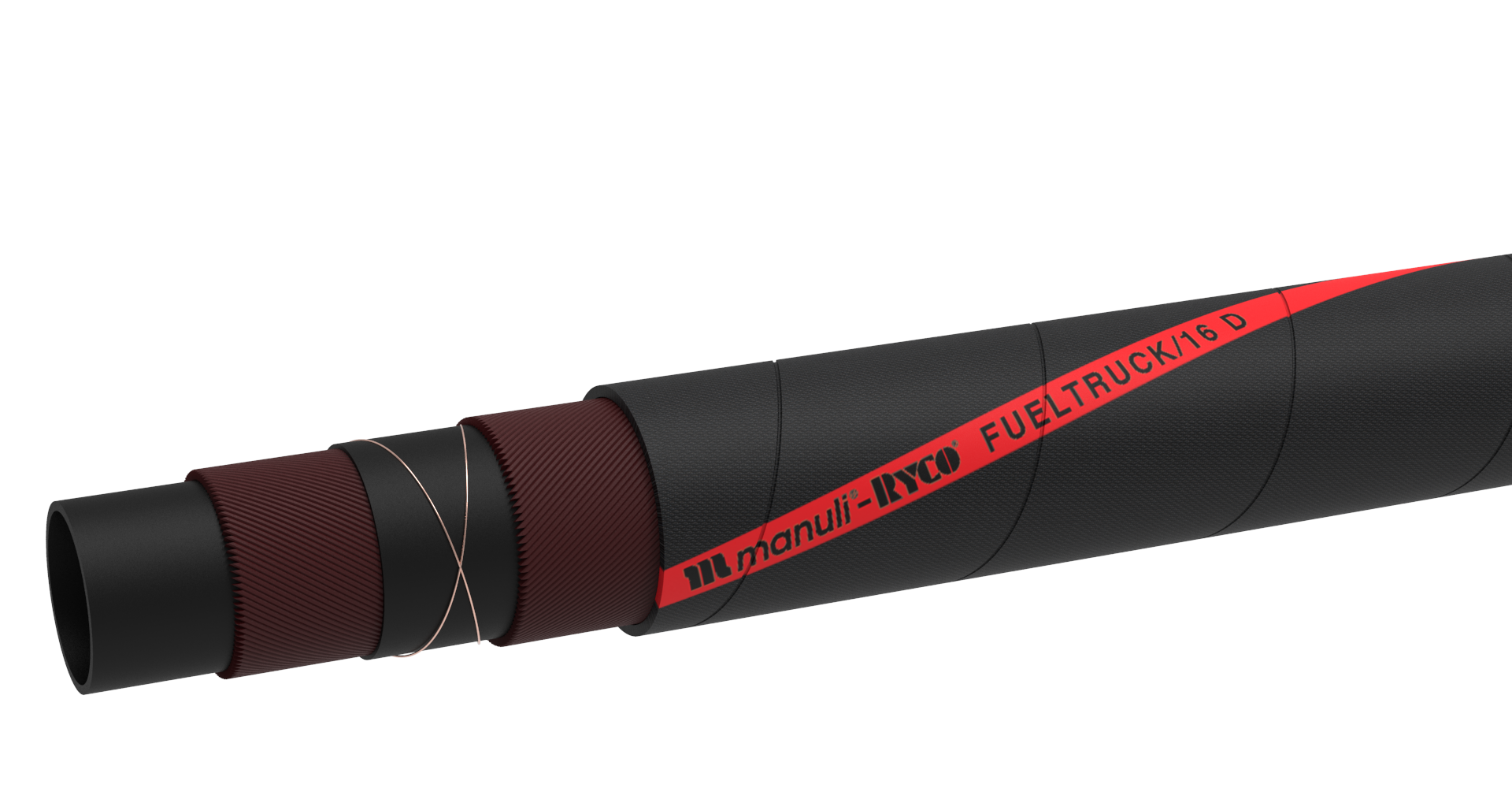

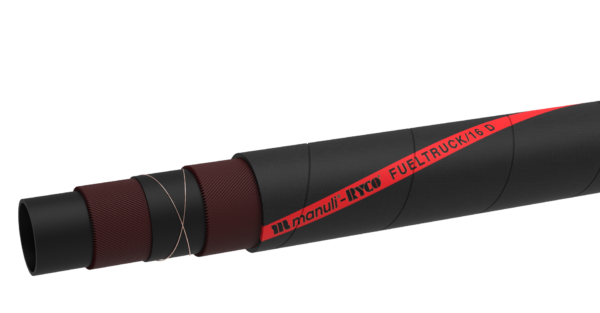

FUELTRUCK/16 D
Additional information
Technical Specifications:
Delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for truck systems, EN 1761 Type D.
WORKING PRESSURE: 16 bar / 240 psi.
TUBE: Black NBR rubber.
REINFORCEMENT: High tensile synthetic cord and two crossing copper wires for grounding.
COVER: Black, synthetic CR rubber; fireproof and anti-static, chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.
Long length assemblies available – Max. length: 61m (DN 19 – DN 102); 30.5m (DN 127 – DN152)
APPLICABLE SPECS: EN 1761 Type D
TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).
| FUELTRUCK/16 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80030019 | 19 | -12 | SR+D08000 SERIES |
| H80030025 | 25 | -16 | SR+D08000 SERIES |
| H80030031 | 31 | -20 | SR+D08000 SERIES |
| H80030038 | 38 | -24 | SR+D08000 SERIES |
| H80030051 | 51 | -32 | SR+D08000 SERIES |
| H80030063 | 63 | -40 | SR+D08000 SERIES |
| H80030076 | 76 | -48 | SR+D08000 SERIES |
| H80030102 | 102 | -64 | SR+D08000 SERIES |
| H80030127 | 127 | -80 | MARKET FITTINGS |
| H80030152 | 152 | -96 | MARKET FITTINGS |
