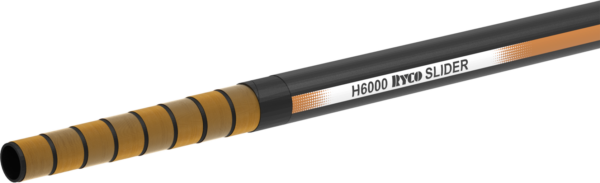

H6000S ISOBARIC – Four-Six-Eight Wire Spiral 6100 psi Hose SLIDER Cover

Additional information

Technical Specifications:

Extremely high pressure hydraulic oil lines. Constant pressure (Isobaric) 420 bar / 6100 psi in all sizes. Small bend radius is an advantage in installations.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four (-06 to -16 size), six (-20 to -24 size) and eight (-32 size) alternating layers of spiralled high tensile steel wire.

COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 and T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
ISO 3862 Type R15, ISO 18752-CC, SAE 100R15.

FEATURES: Tested to 1 million impulse cycles at up to 1/2 SAE 100R15 Minimum Bend Radius. World First: World’s first 2” (-32) hose tested to 1 million impulse cycles at 400mm (15.8”) Minimum Bend Radius. Constant pressure 420 bar / 6100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: -40°C to +121°C (-40°F to +250°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

H6000S – SLIDER ISOBARIC SPIRAL HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
H6006S 10 -06 T7000
H6008S 12 -08 T7000
H6010S 16 -10 T7000
H6012S 19 -12 T6000 T7000
H6016S 25 -16 T6000 T7000
H6020S 31 -20 T6000 T7000
H6024S 38 -24 T6000
H6032S 51 -32 T6000
