MS1000 MINESPRAY
Additional information

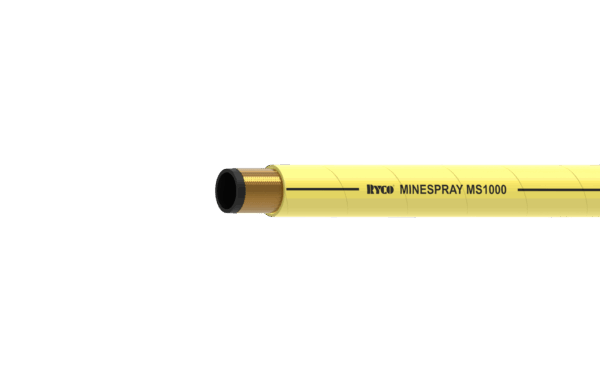

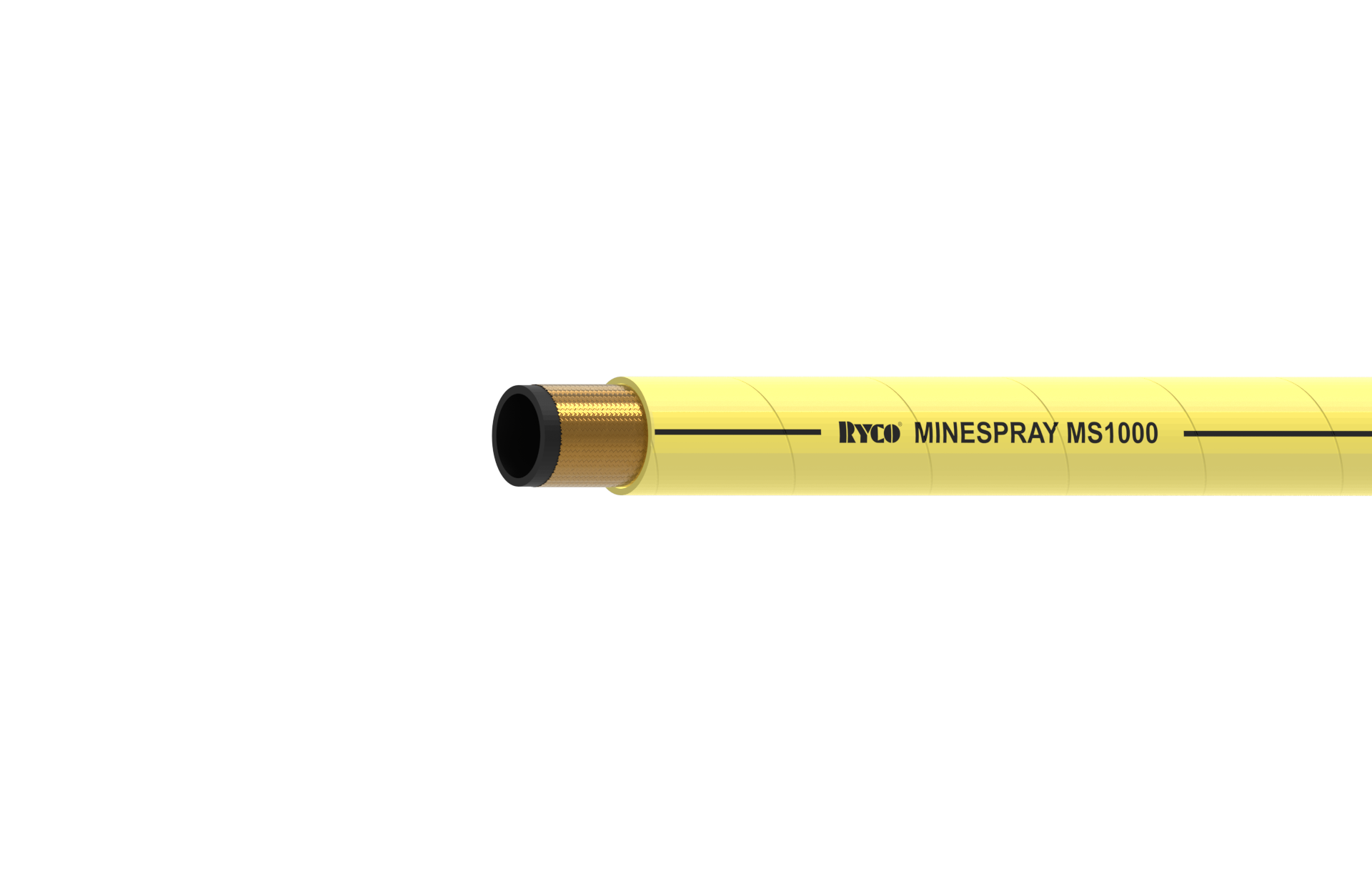

MS1000 MINESPRAY
RECOMMENDED FOR:
Water and air spray suited for dust control in all industrial and mining applications.
TUBE:
Black, oil resistant synthetic rubber. Cover is perforated (pin-pricked).
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
Yellow, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
MSHA – FLAME RESISTANCE:
Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series.
| CS1000 – MINESPRAY HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| MS1008 | 12 | -08 | T2000 |
| MS1010 | 16 | -10 | T2000 |
| MS1012 | 19 | -12 | T2000 |
| MS1016 | 25 | -16 | T2000 |
| MS1020 | 31 | -20 | T2000 |
| MS1024 | 38 | -24 | T2000 |
| MS1032 | 51 | -32 | T2000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
