Additional information

RECOMMENDED FOR:

High pressure hydraulic oil applications where pressure or temperature requirements exceed the performance requirements of SAE 100R1AT and EN 853-1SN. May be used with compressed air if cover of hose is perforated (pinpricked) and additional Safety Devices are used. Refer to Fluid Compatibility Chart for applicable fluids for SURVIVOR range.

PERFORMANCE:

Meets or Exceeds the Performance Requirements of: EN 853-1SN, ISO 1436-R1AT & 1SN, SAE 100R1AT, AS 3791-100R1AT.

TUBE:

Black, synthetic rubber, specifically compounded for high temperature resistance.

REINFORCEMENT:

One braid of high tensile steel wire.

COVER:

SURVIVOR Blue, oil resistant and abrasion resistant synthetic rubber.

FEATURES:

High temperature and long lasting aging resistance. Outstanding ozone resistance. Superior weather and UV resistance. No-Skive couplings

FLAME RESISTANCE AND ANTI-STATIC:

SURVIVOR complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health

Administration.

TEMPERATURE RANGE:

From -46°C to +135°C (-50°F to +275°F); Peaks of 150°C (300°F).

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:

MSHA

COUPLINGS:

NON-SKIVE ONE-PIECE CRIMP

T2000 Series

FIELD ATTACHABLE NON-SKIVE

6000 Series insert

K000 Series ferrule

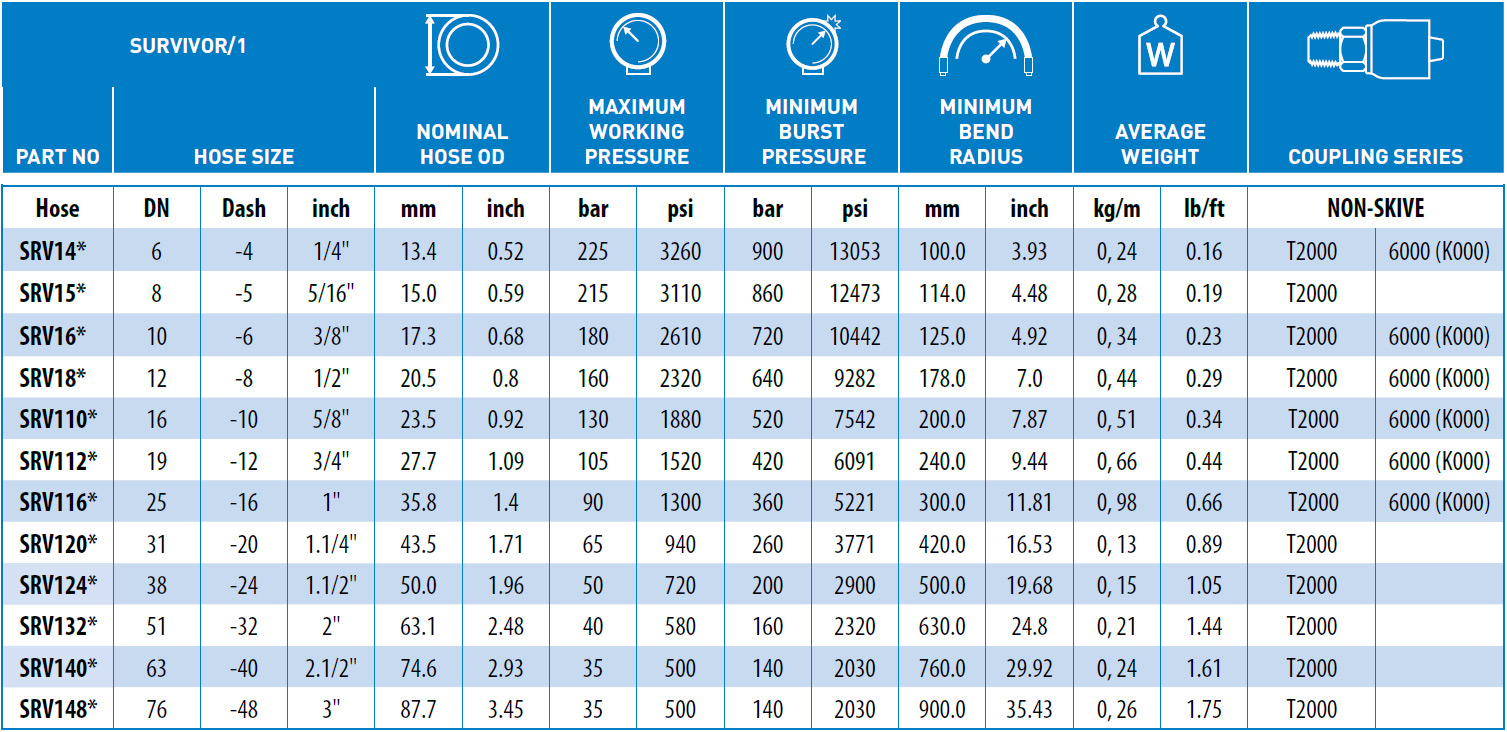

RQP1 – SURVIVOR NON-SKIVE HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE FIELD ATT
HOSE DN DASH NON-SKIVE
SRV14* 6 -4 T2000 6000 (K000)
SRV15* 8 -5 T2000
SRV16* 10 -6 T2000 6000 (K000)
SRV18* 12 -8 T2000 6000 (K000)
SRV110* 16 -10 T2000 6000 (K000)
SRV112* 19 -12 T2000 6000 (K000)
SRV116* 25 -16 T2000 6000 (K000)
SRV120* 31 -20 T2000
SRV124* 38 -24 T2000
SRV132* 51 -32 T2000
SRV140* 63 -40 T2000
SRV148* 76 -48 T2000
