SURVIVOR/5

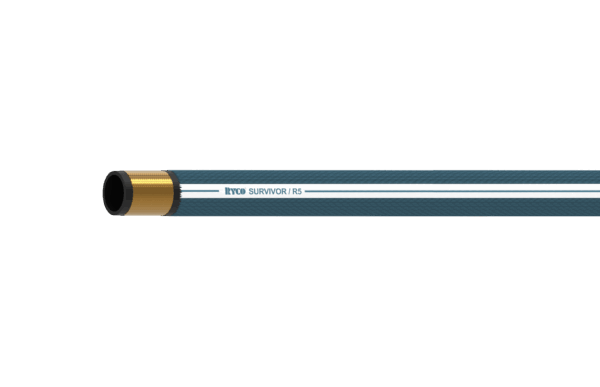

RYCO SURVIVOR

HIGH TEMPERATURE
POLYESTER BRAID COVER
ONE WIRE BRAID HOSE

RECOMMENDED FOR:
Medium pressure hydraulic oil applications where pressure or temperature requirements exceed the performance requirements of SAE 100R5. May be used with compressed air if cover of hose is perforated (pinpricked) and additional Safety Devices are used. Refer to Fluid Compatibility Chart for applicable fluids for SURVIVOR range.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of: SAE J517-100R5, AS 3791 100R5, SAE J1402 Type AII.

TUBE:
Black, synthetic rubber, specifically compounded for high temperature resistance.

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Blue, polyester yarn braid.

FEATURES:
High temperature and long lasting aging resistance. Outstanding ozone resistance. Superior weather and UV resistance. No-Skive couplings.

TEMPERATURE RANGE:
From -46°C to +135°C (-50°F to +275°F); Peaks of 150°C (300°F).

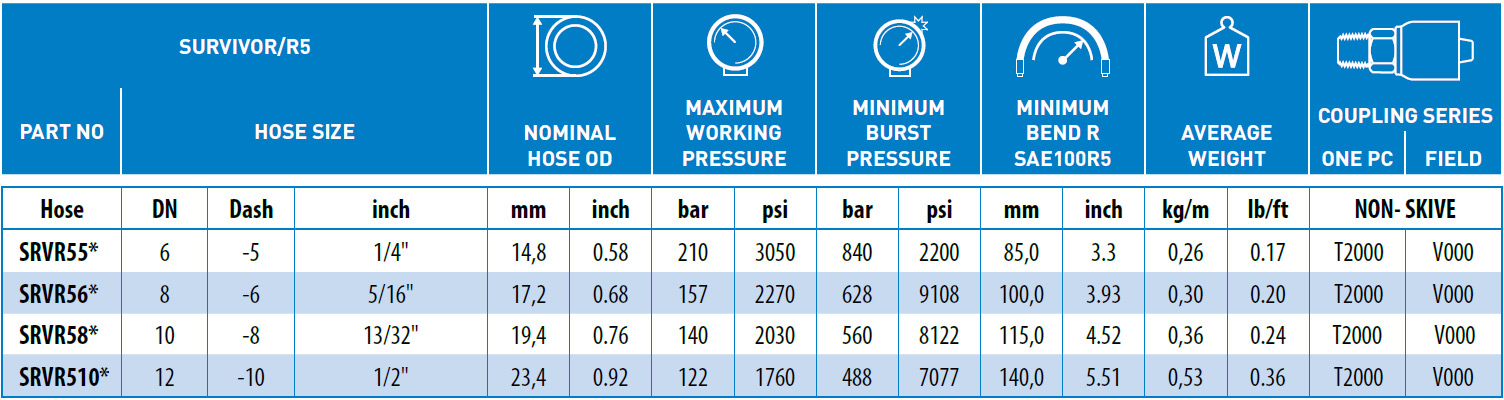

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series

FIELD ATTACHABLE NON-SKIVE
V000 Series

– SURVIVOR/R5 may be used for compressed air applications but requires cover pin-pricking and additional safety devices.
– SURVIVOR/R5 is not approved for “air brake” applications on railway and/or mobile equipment.
– SURVIVOR/R5 is not suitable for high temperature water applications.
– Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
