T5

RYCO T5 TRUCKER

POLYESTER BRAID COVER
ONE WIRE BRAID HOSE

RECOMMENDED FOR:
Medium to high pressure hydraulic oil applications.

The small bend radius, temperature resistance and light weight of Ryco T5 hose make it suitable for under the bonnet automotive/trucking applications including hydraulic oil, diesel fuel, lubrication oil and transmission oil coolers. Sizes T54 to T512 also comply with SAE J1402 Type AII ”Automotive Air Brake Hose” for use in truck ”air brake systems including flexible connections from frame to axle, tractor to trailer, trailer to trailer, and other unshielded air lines that are exposed to potential pull or impact”. T5 may be used with compressed air if maximum working pressure is reduced by 30%. T5 hose is normally used where there is minimal abrasion to the outside cover. If abrasion is likely, support the hose away from the source of abrasion using mounting clamps, or protect with RWA Wire Armour or RSG Spiral Guard. T5 is a reduced bore hose. It has a similar Inside Diameter to steel or copper tubing of the same nominal (outside diameter) size. See page 153 for more information.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R5, SAE 100R5, SAE J1402 Type AII (up to -12 size).

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Polyester inner braid covered with one braid of high tensile steel wire.

COVER:
Black polyester braid. Skiving of cover is not required.

MSHA – FLAME RESISTANCE:
Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration and Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B when used with FS1072 Fire Sleeve.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
For water, emulsions etc. see page 58.

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, DOT, GOST-R, BV, RINA and KR.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T4000 Series (Sizes -04 to -20).

FIELD ATTACHABLE NON-SKIVE
V000 Series (sizes -04 to -32).

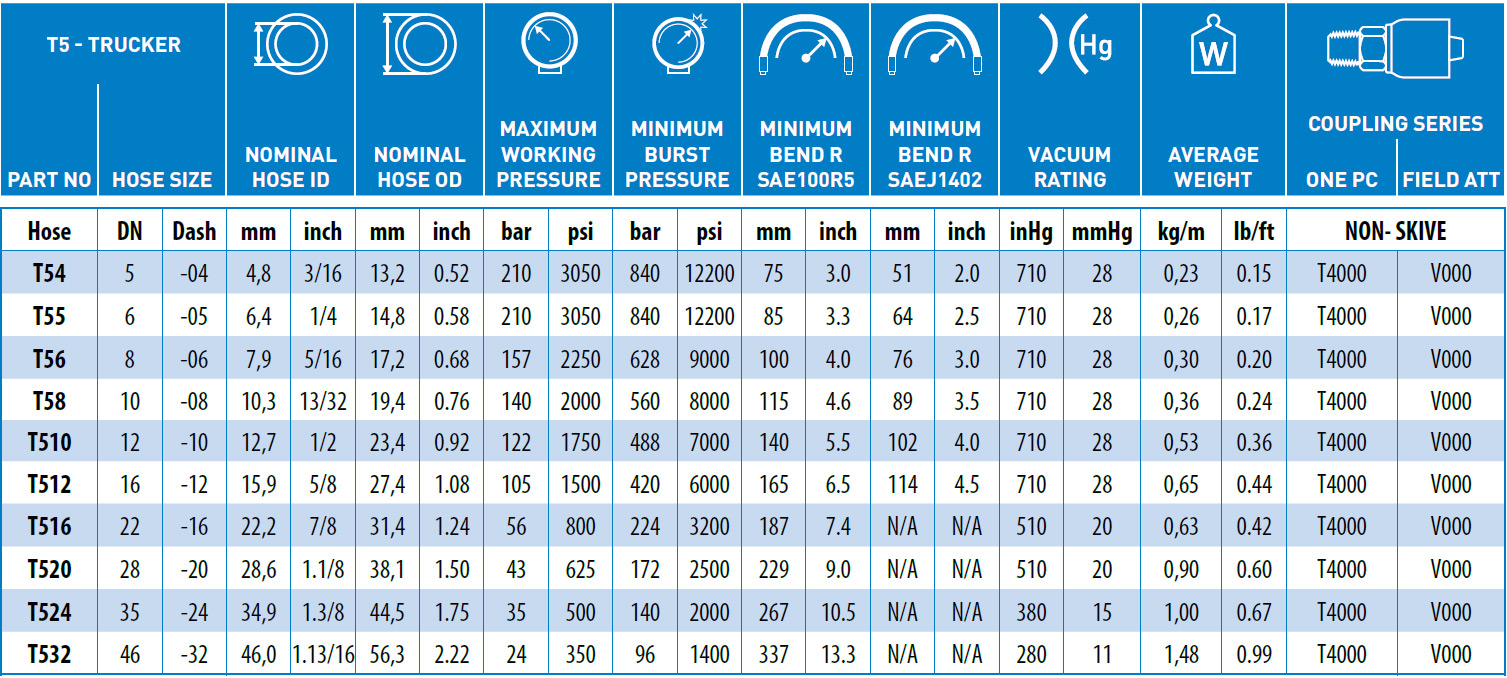

*IMPORTANT NOTE: MAXIMUM WORKING PRESSURE and MINIMUM BURST PRESSURE shown above relate to SAE 100R5 specification and hose used in non Air Brake applications. For Air Brake applications, SAE J1402 Type AII Air Brake Hose specification requires Minimum Burst Pressure 900 psi (62,1 bar) and Proof Pressure of 300 psi (20,7 bar) for all sizes, and reduced Minimum Bend Radii as shown below. T54 to T512 comply with SAE J1402 Minimum Bend Radius at SAE J1402 pressures, and SAE 100R5 Minimum Bend Radius at SAE 100R5 working pressures.

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
