TJ2D

RYCO DIEHARD

EXTRA ABRASION RESISTANT
FRAS
JACK HOSE
TWO WIRE BRAID

RECOMMENDED FOR:
Hydraulic Jack applications requiring a light weight, small outside diameter hose. The very high abrasion resistant properties of the DIEHARD cover extend the life of the hose when it is subjected to the abrasion that may cause the premature failure of standard hoses.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
Materials Handling Institute specification IJ 100 (July 1979) for hydraulic hose and assemblies used with jacking systems.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Two braids of high tensile steel wire.

COVER:
DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent
identification. No skiving required with T2000 Series Crimp Couplings.

FRAS – FLAME RESISTANCE AND ANTI-STATIC:
DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
From -40°C to +49°C (-40°F to +120°F).

WORKING PRESSURE:
Specification IJ 100 (July 1979) is based on 2:1 minimum burst to maximum working pressure safety factor and is suitable for 700 bar/10,000 psi use in hydraulic jack applications ONLY.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -06).

NOTE: Ensure rated Working Pressure of chosen End Style meets or exceeds the 700 bar/10,000 psi Maximum Working Pressure of TJ2D hose.
For hydraulic jack applications, Ryco recommends the use of 3/8” NPTF Male Extended Couplings.
TJ24D: Part No. T2091-0406 One-Piece Crimp. Use of Ryco 750 Spring Guards at each end of the hose assembly is also recommended.
TJ26D: Part No. T2091-0606 One-Piece Crimp. Use of a Bend Restrictor device at each end of the hose assembly is also recommended.

Refer to the Ryco Crimp App for the latest crimping parameters.

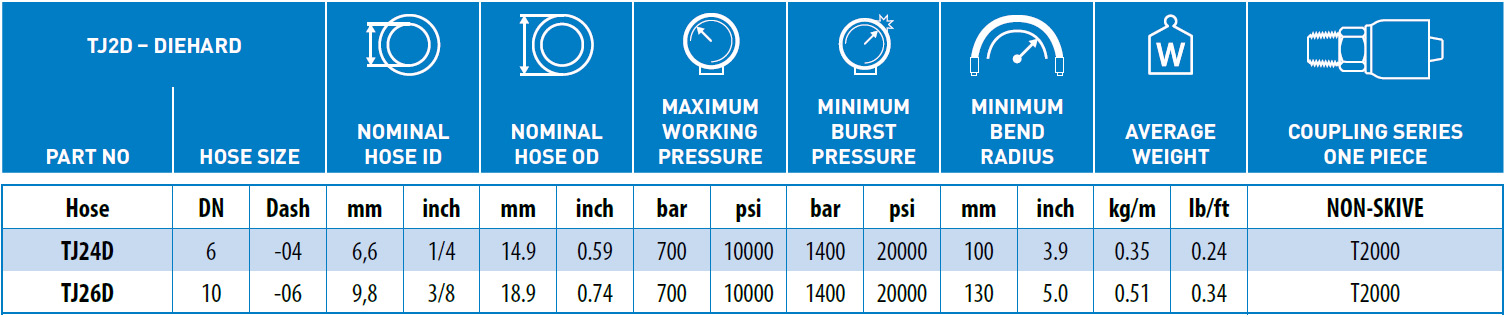

JACK HOSE ASSEMBLIES

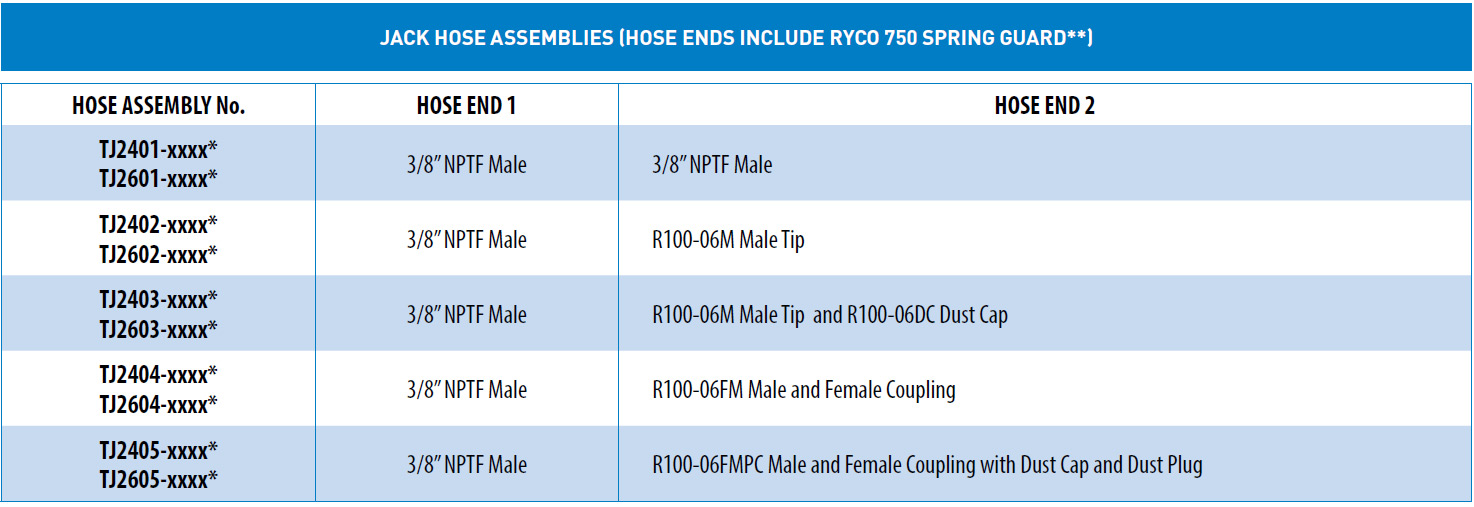

For ease of ordering, Hose Assemblies can be specified using TJ24 and TJ26 numbers below, followed by overall length in millimetres.
For example, to order a TJ24D Hose Assembly, 1800 mm overall length, with 3/8” NPTF male one end and male Screw-On coupling other end, with Spring Guards at each end; simply order TJ2402-1800.
Standard lengths are 1000 mm, 2000 mm and 3000 mm. Other lengths are available.

* Substitute xxxx for overall length (mm)
** Ryco 750 Spring Guard is only available to suit TJ24D hose assemblies.

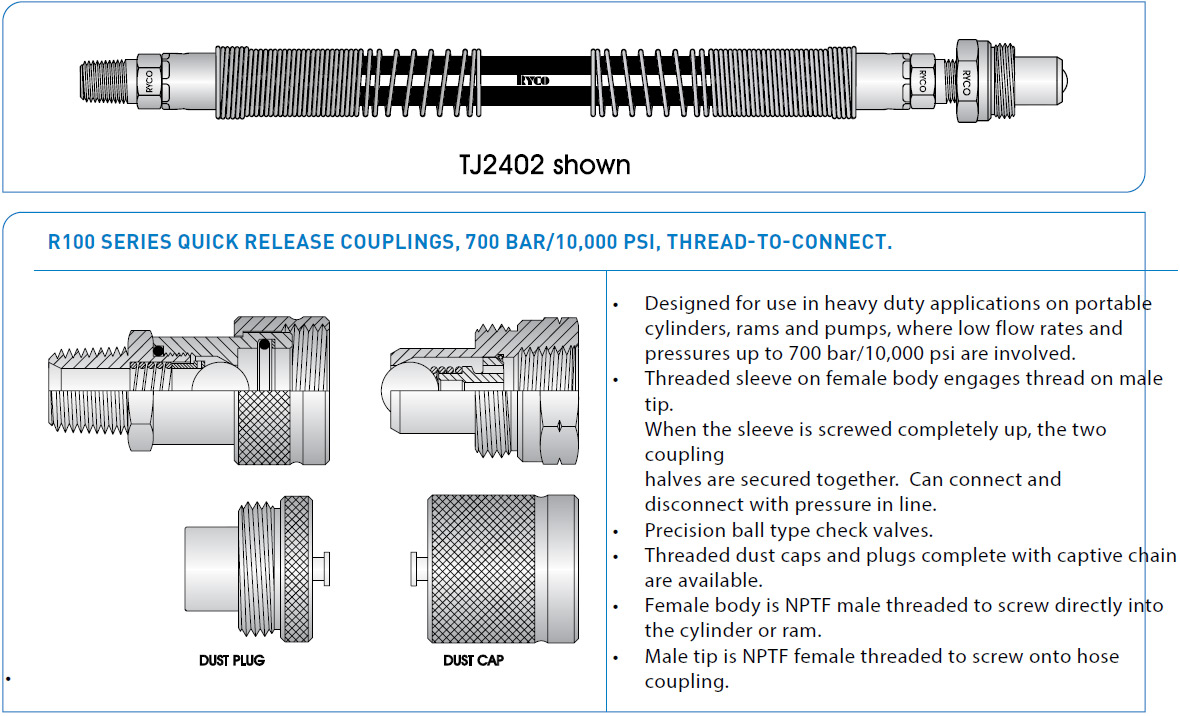

For further information refer to Quick Release Couplings (QRC) Brochure on www.ryco-hydraulics.com.
