H5000C ICEBREAKER
Additional information

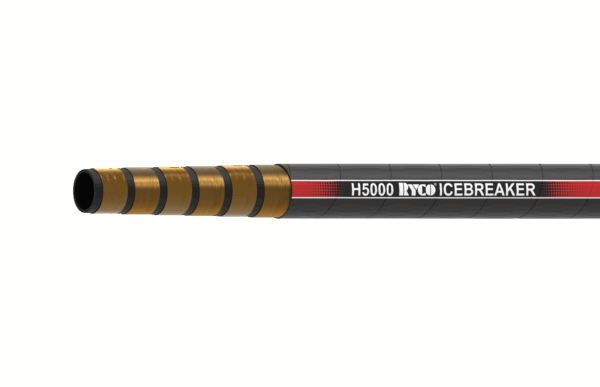

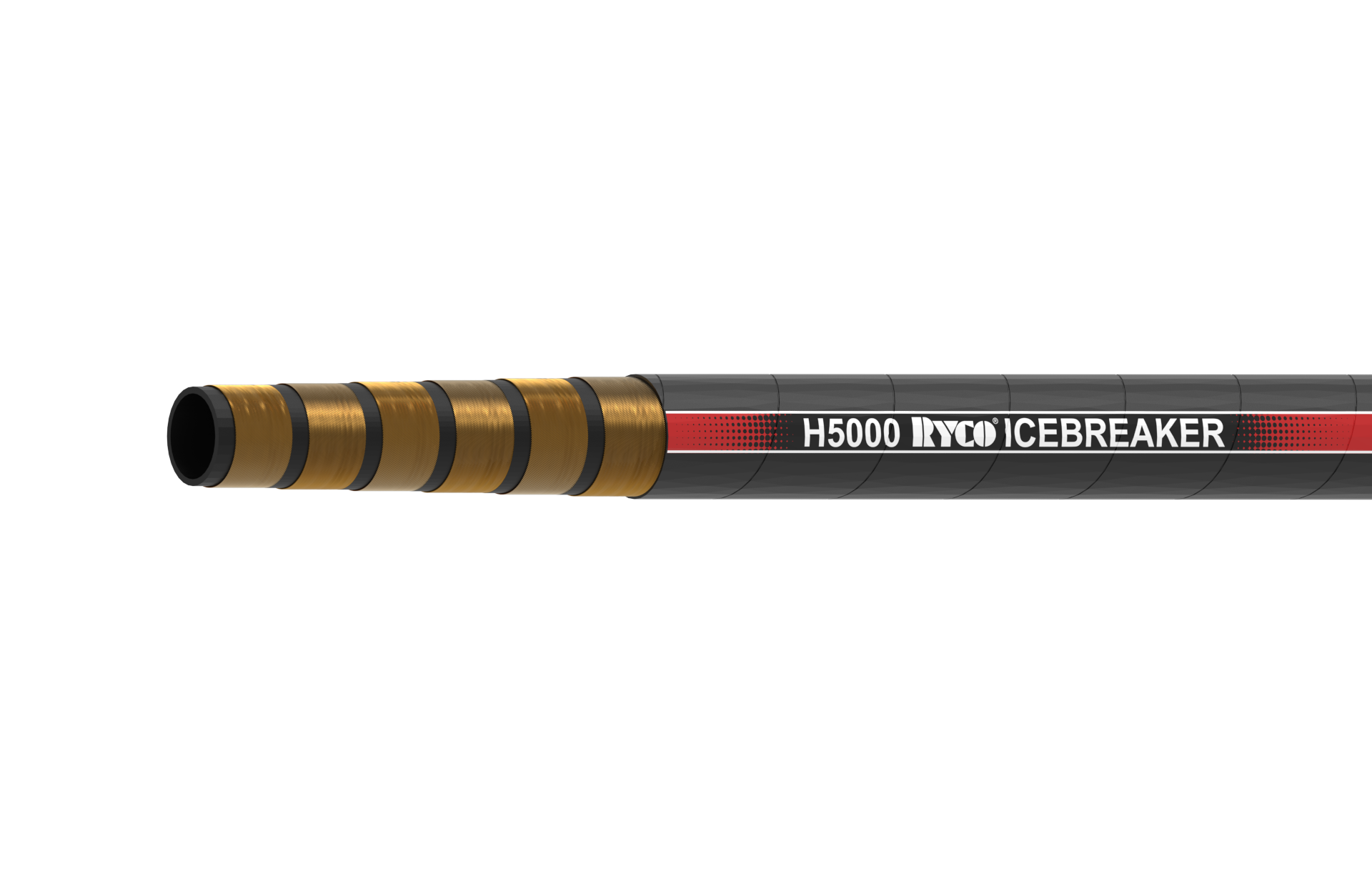

H5000C ICEBREAKER
Low temperature isobaric spiral hose 350 BAR / 5100 PSI.
RECOMMENDED FOR:
Very high pressure hydraulic oil lines in application where low temprature enviromental conditions exist. Constant pressure (Isobaric) 350 bar / 5100 psi in all sizes. Small bend
radius is an advantage in installations.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 856 Type R13, ISO 18752-CC, SAE100R13.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Four (-12 to -20 size) and six (-32 size) alternating layers of spiralled high tensile steel wire.
COVER:
Black, oil and abrasion resistant synthetic rubber.
FEATURES:
Low temperature hose (-60°C/-76°F). Constant pressure 350 bar / 5100 psi in all sizes for easy system design and hose selection.
Small bend radius is an advantage in installations.
TEMPERATURE RANGE:
-60°C to +100°C (-76°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -12 to -20).
| H5000C – ICEBREAKER ISOBARIC SPIRAL HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| H5012C | 19 | -12 | T7000 |
| H5016C | 25 | -16 | T7000 |
| H5020C | 31 | -20 | T7000 |
| H5024C | 38 | -24 | T7000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
